Dataguard Set up in oracle 12c RAC (RAC to RAC)



Above are the environment details for two Node RAC Dataguard setups.

Prerequisite:

PRIMARY DB :(Node1,Node3)

Archivelog mode

check if the db is in archive log is enabled

SQL> archive log list ;

Database log mode             Archive Mode

Automatic archival             Enabled

Archive destination            USE_DB_RECOVERY_FILE_DEST

Oldest online log sequence 214

Next log sequence to archive 215

Current log sequence 215

SQL>  show parameter DB_RECOVERY_FILE_DEST

NAME                                     TYPE         VALUE

------------------------------------ -------------- ------------------------------

db_recovery_file_dest              string          +FRA

db_recovery_file_dest_size      big integer  100G

If the archive log is not enabled. Follow the below steps to change the archive log mode .

[oracle@Node1 ~]srvctl status database -d ITMS

[oracle@Node1 ~]srvctl stop database -d ITMS

[oracle@Node1 ~]srvctl start database -d ITMS -o mount

[oracle@Node1 ~]$ . oraenv

ORACLE_SID = [ITMS1] ?

[oracle@Node1 ~]sqlplus / as sysdba

SQL> alter database archivelog;

[oracle@Node1 ~]srvctl stop database -d ITMS

[oracle@Node1 ~]srvctl start database -d ITMS

Force Logging mode

SQL>  select force_logging from v$database;

FORCE_LOGGING

---------------------------------------

NO

SQL> alter database force logging;

Database altered.

SQL> select force_logging from v$database;

FORCE_LOGGING

---------------------------------------

YES

Configure Standby Redo Log (SRL) files for both the Instance

Min No of SRL= no of threads *(Group in threads +1)

Use the command to check the Number of Redo Groups & threads on the Primary Database.

SQL> set lines 200 pages 200

SQL> col MEMBER for a55

SQL> select group#,thread#,members,status,bytes/1024/1024 from v$log;

In our environment, we have 4 groups with 2 threads. So here Number of SRLs will be

                          SRL= 2*(4+1)=10

Note:  1-We must consider having a single member in each group so to avoid waits with a commit for each transaction in each member.

2-No need to create standby redo log files on standby and Oracle take care of it during RMAN duplicate.

Add standby redo log file :

alter database add standby logfile thread 1

group 9 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 10 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 11 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 12 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 13 ('+REDOLOG','+REDOLOG02')  size 2048M;

alter database add standby logfile thread 2

group 14 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 15 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 16 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 17 ('+REDOLOG','+REDOLOG02')  size 2048M,

group 18 ('+REDOLOG','+REDOLOG02')  size 2048M ;

Use the command to check the Number of Standby Redo Groups & threads that are added to the Primary Database.

SQL> select group#,thread#,bytes from v$standby_log;

STANDBY_FILE_MANAGEMENT Parameter

SQL> show parameter standby_file_management

NAME                                     TYPE       VALUE

------------------------------------ ----------- ------------------------------

standby_file_management       string       MANUAL

SQL> alter system set standby_file_management = 'AUTO' scope=spfile sid=’*’;

System altered.

SQL> show parameter standby_file_management

NAME                                      TYPE     VALUE

------------------------------------ ----------- ------------------------------

standby_file_management        string      AUTO

REMOTE_LOGIN_PASSWORDFILE Parameter

SQL> show parameter remote_login_passwordfile;

NAME                                     TYPE       VALUE

------------------------------------ ----------- ------------------------------

remote_login_passwordfile     string        EXCLUSIVE

If not set to exclusive :

SQL> alter system set remote_login_passwordfile = 'EXCLUSIVE' scope = spfile sid=’*’;

SQL> ALTER SYSTEM SET LOG_ARCHIVE_CONFIG='DG_CONFIG=(ITMS,ITMSDR)' sid='*';

System altered.

SQL> alter system set LOG_ARCHIVE_DEST_1='LOCATION=+FRA VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=ITMS' scope= both sid='*';

System altered.

SQL> ALTER SYSTEM SET LOG_ARCHIVE_DEST_2='SERVICE=ITMSDR async VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=ITMSDR' scope=both sid='*';

System altered.

SQL> ALTER SYSTEM SET LOG_ARCHIVE_DEST_STATE_2=ENABLE sid='*';

System altered.

SQL> ALTER SYSTEM SET LOG_ARCHIVE_FORMAT='ITMS_%t_%s_%r.arc' SCOPE=SPFILE;

System altered.

SQL> ALTER SYSTEM SET FAL_SERVER='ITMSDR' SCOPE=BOTH sid='*';

System altered.

SQL> ALTER SYSTEM SET FAL_CLIENT='ITMS' SCOPE=BOTH sid='*';

System altered.

SQL> ALTER SYSTEM SET LOG_ARCHIVE_MAX_PROCESSES=10 sid='*';

System altered.

Note: Set the FAL_SERVER parameter with the "NET ALIAS NAME" of the standby database. This parameter will be used only when a switchover occurs and the primary starts behaving in the standby role.

Restart the database to make the Changes Effective

[oracle@Node1 ~]$ srvctl stop database -d  ITMS

[oracle@Node1 ~]$ srvctl start database -d ITMS

Now, verify all the required values have the appropriate values.

set lines 999 pages 999

col value for a110

col name for a50

select name, value

from v$parameter

where name in ('db_name','db_unique_name','log_archive_config', 'log_archive_dest_1','log_archive_dest_2',

'log_archive_dest_state_1','log_archive_dest_state_2', 'remote_login_passwordfile',

'log_archive_format','log_archive_max_processes','fal_server','fal_client','standby_file_management');

NAME                                          VALUE

-----------------------------------       -------------------------------

log_archive_dest_1                      LOCATION=+FRA

log_archive_dest_2                      SERVICE=ITMSDR NOAFFIRM ASYNC VALID_FOR=                                                                       (ONLINE_LOGFILES,PRIMARY_ROLE)                                                                                                 DB_UNIQUE_NAME=ITMSDR

log_archive_dest_state_1            enable

log_archive_dest_state_2            ENABLE

fal_client                                      ITMS

fal_server                                     ITMSDR

log_archive_config                      DG_CONFIG=(ITMS,ITMSDR)

log_archive_format                     ITMS_%t_%s_%r.arc

log_archive_max_processes       10

standby_file_management           AUTO

remote_login_passwordfile         EXCLUSIVE

db_name                                      ITMS

db_unique_name                         ITMS

Create an Initialization Parameter file for the Standby database

SQL> create pfile='/tmp/inititmsdr.ora' from spfile ;

Copy the Password File from Primary to Standby

 To get the details of the Password file we will check the database configuration.

[oracle@Node1 ~]$ srvctl config database -d ITMS

Database unique name: ITMS

Database name: ITMS

Oracle home: /u01/app/oracle/dbhome

Oracle user: oracle

Spfile: +DATA/ITMS/PARAMETERFILE/spfile.283.1013156439

Password file: +DATA/ITMS/PASSWORD/pwditms.270.1013155873

Domain:

Start options: open

Stop options: immediate

Database role: PRIMARY

Management policy: AUTOMATIC

Server pools:

Disk Groups: DATA,REDOLOG,REDOLOG02,FRA

Mount point paths:

Services:

Type: RAC

Start concurrency:

Stop concurrency:

OSDBA group: dba

OSOPER group: oinstall

Database instances: ITMS1,ITMS2

Configured nodes: Node1,Node3

Database is administrator managed

get the password file location and copy it to the target

[oracle@Node1 ~] su - grid

[grid@Node1 ~]$ . oraenv

ORACLE_SID = [+ASM1] ?

[grid@Node1 ~]$ asmcmd

ASMCMD>

ASMCMD> pwget  --dbuniquename ITMS

+DATA/ITMS/PASSWORD/pwditms.270.1013155873

ASMCMD>  pwcopy +DATA/ITMS/PASSWORD/pwditms.270.1013155873  /home/grid/orapwditmsdr

copying +DATA/ITMS/PASSWORD/pwditms.270.1013155873 ->  /home/grid/orapwditmsdr

Copy the Parameter File & Password File to Standby Node2

[oracle@Node1 ~]$ scp  /tmp/inititmsdr.ora  root@Node2:/home/oracle/backup

root@Node2's password:

inititmsdr.ora 100% 2277 772.5KB/s 00:00

[oracle@Node1~]$ scp /home/grid/orapwditmsdr  root@Node2:/home/oracle/backup

root@Node2's password:

orapwditmsdr   100% 7680     3.0MB/s   00:00

Add TNS entries for Standby Database in Primary & Vice Verse

Add the tns entries of both the Primary and Standby Database in the tnsnames.ora file of both the Primary and Standby Database.

============

Primary DB TNS :

==========

ITMS =

  (DESCRIPTION =

    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.56.174)(PORT = 1524))

    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.56.175)(PORT = 1524))

    (CONNECT_DATA =

      (SERVER = DEDICATED)

      (SERVICE_NAME = ITMS)

    )

  )

ITMS1 =

  (DESCRIPTION =

    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.56.174)(PORT = 1524))

    (CONNECT_DATA =

      (SERVER = DEDICATED)

      (SERVICE_NAME = ITMS)

      (INSTANCE_NAME= ITMS1)

    )

  )

ITMS2 =

  (DESCRIPTION =

    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.56.175)(PORT = 1524))

    (CONNECT_DATA =

      (SERVER = DEDICATED)

      (SERVICE_NAME = ITMS)

      (INSTANCE_NAME= ITMS2)

    )

=============

Standby DB TNS :

============

ITMSDR =

  (DESCRIPTION =

    (ADDRESS = (PROTOCOL = TCP)(HOST =192.168.80.17)(PORT = 1524))

    (ADDRESS = (PROTOCOL = TCP)(HOST =192.168.80.18)(PORT = 1524))

    (CONNECT_DATA =

      (SERVER = DEDICATED)

      (SERVICE_NAME = ITMSDR)

    )

  )

ITMSDR1 =

  (DESCRIPTION =

    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.80.17)(PORT = 1524))

    (CONNECT_DATA =

      (SERVER = DEDICATED)

      (SERVICE_NAME = ITMSDR)(UR=A)

      (INSTANCE_NAME=ITMSDR1)

    )

  )

ITMSDR2 =

  (DESCRIPTION =

    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.80.18)(PORT = 1524))

    (CONNECT_DATA =

      (SERVER = DEDICATED)

      (SERVICE_NAME = ITMSDR)(UR=A)

      (INSTANCE_NAME=ITMSDR2)

    )

  )

We have done the Modification of Parameters in the Primary Database.

Now the Changes will be done in the Standby Database.

STANDBY DB :(Node2,Node4)

Static Entry of Listener

Add Static Entry of Listener at both nodes in Standby Database (Node2,Node4)

LISTENER_Node2:

SID_LIST_LISTENER =

(SID_LIST =

   (SID_DESC =

       (GLOBAL_DBNAME = ITMSDR)

       (ORACLE_HOME = /u01/app/oracle/dbhome)

       (SID_NAME = ITMSDR1)

   )

 )

LISTENER_Node4:

SID_LIST_LISTENER =

(SID_LIST =

   (SID_DESC =

     (GLOBAL_DBNAME = ITMSDR)

     (ORACLE_HOME = /u01/app/oracle/dbhome)

     (SID_NAME = ITMSDR2)

 )

)

Create Required Directories(PATH) for the Standby Instances

Nodes2

[oracle@Node2 ]$ cd $ORACLE_BASE/diag/rdbms/

[oracle@Node2 rdbms]$ mkdir -p primdr/ITMSDR1/trace

[oracle@Node2 rdbms]$ mkdir -p primdr/ITMSDR1/cdump

[oracle@Node2 diag]$ cd ../admin/

[oracle@Node2 admin]$ mkdir -p ITMSDR/adump

Node4

[oracle@Node4~]$ cd $ORACLE_BASE/diag/rdbms/

[oracle@Node4 rdbms]$ mkdir -p primdr/ITMSDR2/trace

[oracle@Node4 rdbms]$ mkdir -p primdr/ITMSDR2/cdump

[oracle@Node2 rdbms]$ cd ../../admin/

[oracle@Node2 admin]$ mkdir -p ITMSDR/adump

Create the ASM Directories

ASMCMD> mkdir data/itmsdr

ASMCMD> cd data/itmsdr

ASMCMD> mkdir PARAMETERFILE DATAFILE CONTROLFILE TEMPFILE ONLINELOG

Modify the Pfile that we had copied from Primary Database

vi  /home/oracle/inititmsdr.ora

*.audit_file_dest='/u01/app/oracle/admin/ITMSDR/adump'

*.audit_trail='NONE'

*.cluster_database=true

*.compatible='12.1.0.2.0'

*.control_files='+DATA/ITMSDR/control01.ctl','+DATA/ITMSDR/control02.ctl'

*.db_block_size=8192

*.db_domain=''

*.db_name='ITMS'

*.db_recovery_file_dest='+FRA'

*.db_recovery_file_dest_size=161061273600

*.db_unique_name='ITMSDR'

*.diagnostic_dest='/apps/oracle/121'

*.fal_client='ITMSDR'

*.fal_server='ITMS'

ITMSDR1.instance_number=1

ITMSDR2.instance_number=2

*.log_archive_config='DG_CONFIG=(ITMSDR,ITMS)'

*.log_archive_dest_1='LOCATION=USE_DB_RECOVERY_FILE_DEST VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=ITMSDR'

*.log_archive_dest_2='SERVICE=ITMS VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=ITMS'

*.log_archive_format='ITMS_%t_%s_%r.arc'

*.memory_target=0

*.open_cursors=1000

*.pga_aggregate_target=64424509440

*.processes=512

*.remote_login_passwordfile='EXCLUSIVE'

*.sessions=256

*.sga_max_size=161061273600

*.sga_target=161061273600

*.shared_servers=0

*.standby_file_management='AUTO'

ITMSDR2.thread=2

ITMSDR1.thread=1

ITMSDR1.undo_tablespace='UNDOTBS1'

ITMSDR2.undo_tablespace='UNDOTBS2'

Passwordfile

Copy the Passwordfile that we had transferred from the Primary Database to the $ORACLE_HOME/dbs of both the Standby Nodes and Rename it on Both Nodes.

[oracle@Node2 ~]$ cp orapwdITMS /u01/app/oracle/dbhome/dbs/orapwITMSDR1

[oracle@Node2 ~]$ scp orapwdITMS  oracle@Node4:/u01/app/oracle/dbhome/dbs/orapwITMSDR2

Restore the Database Backup on Standby Node

export ORACLE_SID=ITMSDR1

export ORACLE_HOME=/u01/app/oracle/dbhome

export ORACLE_BASE=/u01/app/oracle

 Now we will create the physical standby database from the primary database using RMAN DUPLICATE Database :

[oracle@Node2 ~]$ sqlplus "/as sysdba"

SQL*Plus: Release 12.1.0.2.0 Production on Mon Jun 15 03:21:33 2020

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

Connected to an idle instance.

SQL> startup nomount pfile=' /home/oracle/inititmsdr.ora' ;

ORACLE instance started.

Total System Global Area 1.0737E+11 bytes

Fixed Size                  5298856 bytes

Variable Size            3.2481E+10 bytes

Database Buffers         7.4625E+10 bytes

Redo Buffers              263135232 bytes

[oracle@Node2 ~]$ rman target sys/passwd@ITMS auxiliary sys/passwd@ITMSDR1

Recovery Manager: Release 12.1.0.2.0 - Production on Mon Jun 15 03:32:22 2020

Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.

connected to target database: ITMS (DBID=xxxxxxxxxx)

connected to auxiliary database: ITMS (not mounted)

RMAN> duplicate target database for standby from active database nofilenamecheck;

..........................................................................

Finished Duplicate Db at 15-JUN-20

RMAN> alter system register;

Statement processed

RMAN> exit

Recovery Manager complete.

[oracle@Node2 ~]$ sqlplus "/as sysdba"

SQL> select open_mode, database_role from v$database;

OPEN_MODE    DATABASE_ROLE

-------------------- ----------------

MOUNTED        PHYSICAL STANDBY

SQL> select name,open_mode, database_role from v$database;

NAME  OPEN_MODE   DATABASE_ROLE

--------- -------------------- ----------------

ITMS    MOUNTED       PHYSICAL STANDBY

SQL> select group#,thread#,bytes from v$standby_log;

GROUP#  THREAD#   BYTES

------------ --------------- ----------

         9           1              2147483648

        10          1              2147483648

        11          1              2147483648

        12          1              2147483648

        13          1              2147483648

        14          2              2147483648

        15          2              2147483648

        16          2              2147483648

        17          2              2147483648

        18          2              2147483648

10 rows selected.

SQL> select THREAD#, max(SEQUENCE#) from v$log_history group by thread#;

   THREAD# MAX(SEQUENCE#)

---------- --------------

         1            304

         2            215

This completes the copying of data from the primary database to the standby database. However, since we know that the standby database is created from a single instance, the settings file and the password file are stored in the local file system. So in the next step, we will copy the settings file and the password file to the ASM shared file system. And then will bring both the instances of standby database up and running.

===============

Parameter file copy

===============

SQL> alter database recover managed standby database disconnect from session;

Database altered.

SQL> select THREAD#, max(SEQUENCE#) from v$log_history group by thread#;

   THREAD# MAX(SEQUENCE#)

---------- --------------

         1            304

         2            215



SQL> show parameter pfile

NAME                                     TYPE        VALUE

------------------------------------ ----------- ------------------------------

spfile                                         string

SQL> create spfile='+DATA' from pfile='/home/oracle/inititmsdr.ora';

File created.

ASMCMD> cd ITMSDR/

ASMCMD> ls

CONTROLFILE/

DATAFILE/

PARAMETERFILE/

ASMCMD> cd PARAMETERFILE/

ASMCMD> ls

spfile.277.123456789

ASMCMD> pwd

+DATA/ITMSDR/PARAMETERFILE

SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL;

Database altered.

SQL> shu abort ;

ORACLE instance shut down.

Now go to the DBS location of both the nodes and add the spfile location :

[oracle@Node2 ~]$ vi /u01/app/oracle/dbhome/dbs/initITMSDR1.ora

spfile='+DATA/ITMSDR/PARAMETERFILE/spfile.277.1230456789

[oracle@Node4~]$ vi /u01/app/oracle/dbhome/dbs/initITMSDR2.ora

spfile='+DATA/ITMSDR/PARAMETERFILE/spfile.277.1230456789

ASMCMD> pwcopy /u01/app/oracle/dbhome/dbs/orapwITMSDR1

+DATA/ITMSDR/orapwitmsdr

copying /u01/app/oracle/dbhome/dbs/orapwITMSDR1 -> +DATA/ITMSDR/orapwitmsdr

Add the Standby DB Instance to Grid Service

 As the Standby Database is in RAC ,we will register/add the database and instance services to the Cluster .

[oracle@Node2 ~]$ srvctl add database -d ITMSDR -n ITMS -o /u01/app/oracle/dbhome -r PHYSICAL_STANDBY -startoption MOUNT -diskgroup DATA,FRA -pwfile +DATA/ITMSDR/orapwitmsdr

[oracle@Node2 ~]$ srvctl add instance -d ITMSDR -i ITMSDR1 -n Node2

[oracle@Node2  ~]$ srvctl add instance -d ITMSDR -i ITMSDR2 -n Node4

[oracle@Node2 dbs]$ sqlplus "/as sysdba"

Connected to:

Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production

With the Partitioning, Real Application Clusters and Automatic Storage Management options

SQL> shu abort ;

ORACLE instance shut down.

[oracle@Node2 ~]$ srvctl start database -d  ITMSDR

[oracle@Node2 ~]$ srvctl status database -d  ITMSDR

Instance ITMSDR1 is running on node Node2

Instance ITMSDR2 is running on node Node4

[oracle@Node2 dbs]$ sqlplus "/as sysdba"

SQL*Plus: Release 12.1.0.2.0 Production on

Connected to:

Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production

With the Partitioning, Real Application Clusters and Automatic Storage Management options

SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;

Database altered.

SQL> select name,open_mode,database_role ,instance_name,status from gv$database,gv$instance ;

NAME    OPEN_MODE          DATABASE_ROLE        INSTANCE_NAME    STATUS

---------    --------------------       -----------------------------  --------------------------- ------------

ITMS      MOUNTED              PHYSICAL STANDBY  ITMSDR1                    MOUNTED

ITMS      MOUNTED              PHYSICAL STANDBY  ITMSDR2                    MOUNTED

Verify if Log Switch is Working or Not

Primary:

SQL> alter system switch logfile ;

System altered.

SQL> /

System altered.

SQL> /

System altered.

SQL> select THREAD#, max(SEQUENCE#) from v$log_history group by thread#;

THREAD#   MAX(SEQUENCE#)

--------------- --------------

         1            346

         2            245

At Standby :

SQL> select thread#, max (sequence#) from v$archived_log where APPLIED='YES' group by thread#;

THREAD#    MAX(SEQUENCE#)

---------------  --------------

         1            346

         2            245

So we have successfully configured the Dataguard for our ORACLE RAC 12c.

Reference Doc Id: MAA - 10g Creating a RAC Physical Standby for a RAC Primary (Doc ID 380449.1)

Creating a 10gr2 Data Guard Physical Standby database with Real-Time apply (Doc ID 343424.1)

How to Modify Private IP in Oracle RAC Database

The 'oifcfg' tool in Oracle Clusterware manages the network information, including the interface, subnet, and role of each interface. However, it cannot update the actual IP addresses for these interfaces. To see the currently configured interfaces in the Oracle Clusterware Registry (OCR), you can use the command 'oifcfg getif'.

Changing Private IP MAC address only without changing anything else

• Shutdown Oracle Clusterware stack on all cluster nodes where change is required,
• Making IP modifications at the OS layer (eg: OS network config, etc) for private network, and restarting the Oracle Clusterware stack on all nodes will complete the task.
• Please note, that this change can not be done in a rolling manner.
• When the netmask is changed, the associated subnet ID is often changed. Oracle only stores the network interface name and subnet ID in OCR, not the netmask.
• oifcfg command can be used for such change, oifcfg commands only require to run on 1 of the cluster nodes, not all.

From Node 1

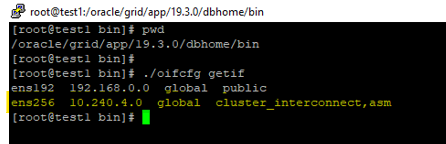

    $GRID_HOME/bin/--> ./ oifcfg getif

From Node 2

    $GRID_HOME/bin/--> ./ oifcfg getif

Please take a backup of profile.xml on all cluster nodes before proceeding,

From Node 1

     as grid user:

     $ cd $GRID_HOME/gpnp/<hostname>/profiles/peer/

     $ cp -p profile.xml profile.xml.bkp

Follow the same step to take profile backup from all remaining Nodes one by one.

Ensure Oracle Clusterware is running on ALL cluster nodes in the cluster

$./crsctl status res -t

Check the Listener configuration on both Node

From Node 1

From Node 2

Modify /etc/hosts file on each node.

Add a new private interconnect IP on each node.

Oracle RAC Database Architecture Overview

As a grid user:

• Add the new cluster_interconnect information
• Get the existing information.
• As ASMLISTENER is using the private network, modifying the private network will affect ASMLISTENER.
• It is required to add a new ASMLISTENER with the new network configuration. Skip this step if the subnet for the ASM network is not changed.
• A new resource named ora.asmnet1.asmnetwork has been added which also needs to be updated.

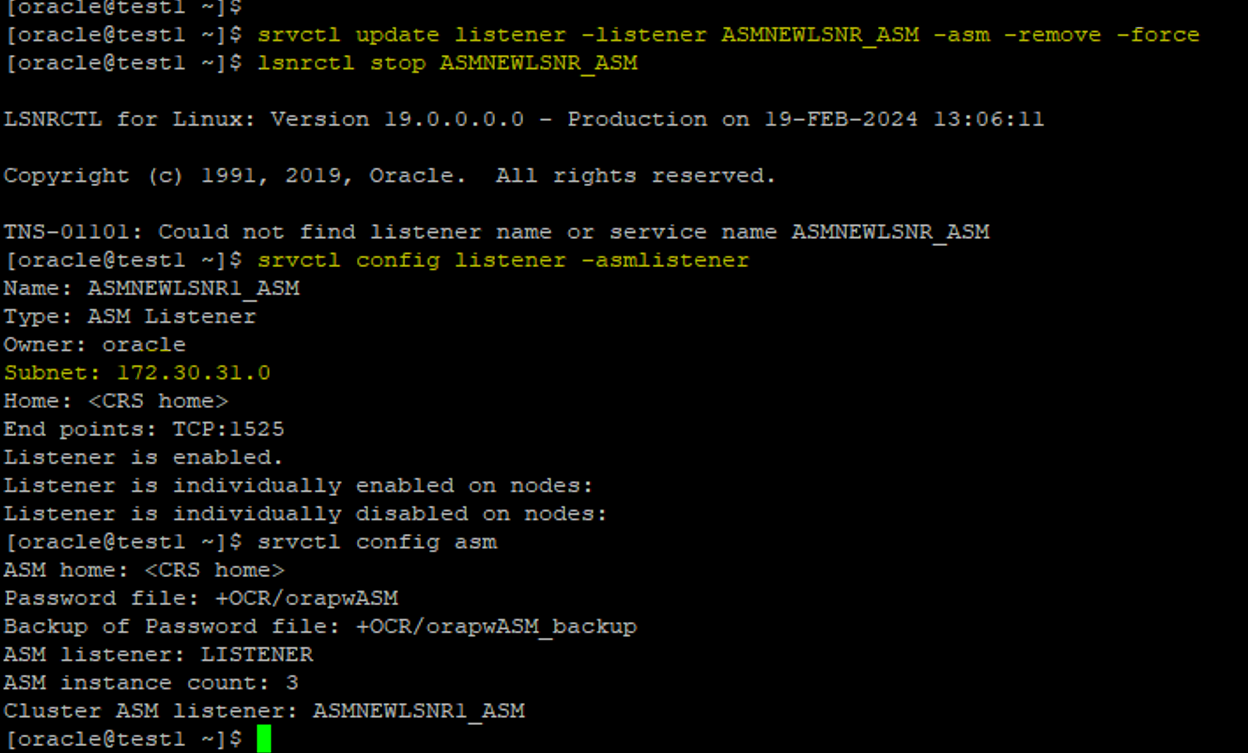

         srvctl add listener -asmlistener -l ASMNEWLSNR1_ASM -subnet 172.30.31.0

An error may be seen while removing the resource

PRCR-1025 : Resource ora.asmnet1.asmnetwork is still running

To avoid such errors, is it possible to modify this command with the -force option.

• A new resource named ora.asmnet1.asmnetwork has been added which also needs to be updated/remove old one.

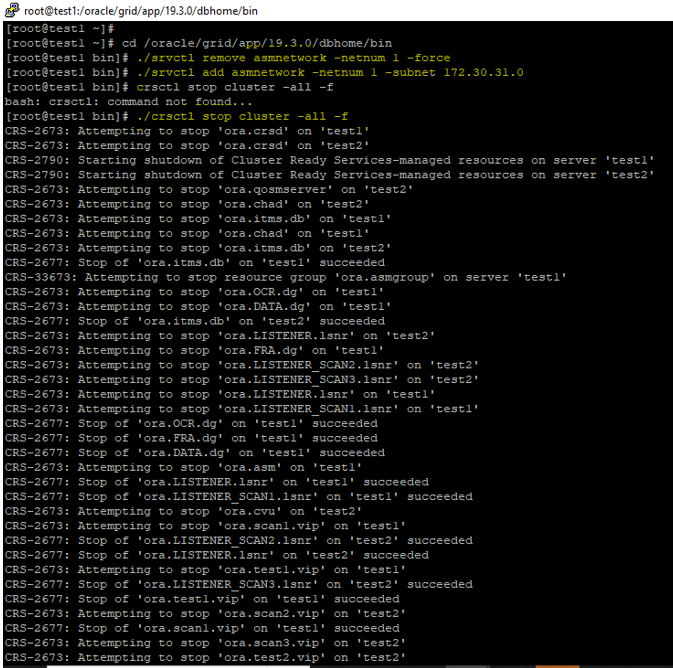

• Shutdown Oracle Clusterware on all nodes
• Restart Oracle Clusterware on all nodes

Ensure Oracle Clusterware is Stop on ALL cluster nodes in the cluster

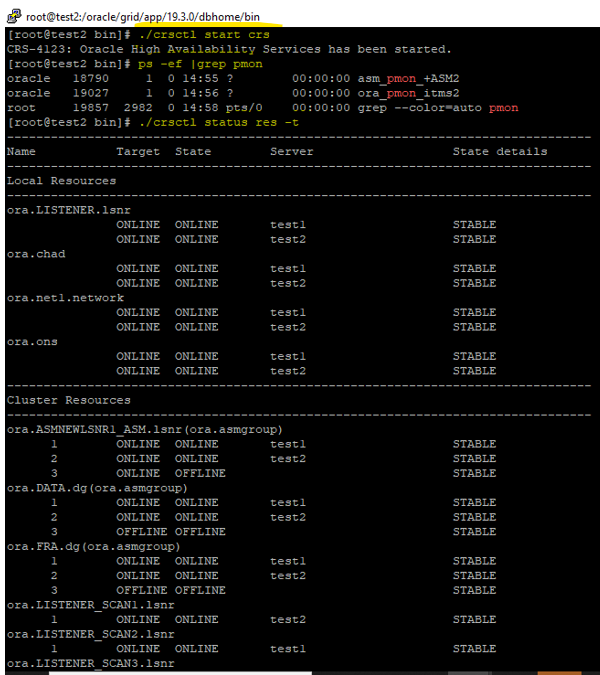

Start CRS as root on Each Node

Check if Cluster returns the New/Modified  Priv IP

From Node 1

From Node 2



Reference Doc Id: How to Modify Private Network Information in Oracle Clusterware (Doc ID 283684.1)

Overview of Instance Recovery

Instance recovery is the process of applying records in the online redo log to data files to reconstruct changes made after the most recent checkpoint.

Instance recovery occurs automatically when an administrator attempts to open a database that was previously shut down inconsistently.

Purpose of Instance Recovery

Instance recovery ensures that the database is in a consistent state after an instance failure. The files of a database can be left in an inconsistent state because of how Oracle Database manages database changes.

A redo thread is a record of all of the changes generated by an instance. A single-instance database has one thread of redo, whereas an Oracle RAC database has multiple redo threads, one for each database instance.

When a transaction is committed, the log writer process (LGWR)writes both the remaining redo entries in memory and the transaction SCN to the online redo log. However, the database writer (DBW) process writes modified data blocks to the data files whenever it is most efficient. For this reason, uncommitted changes may temporarily exist in the data files while committed changes do not yet exist in the data files.

If an instance of an open database fails, either because of a SHUTDOWN ABORT statement or abnormal termination, then the following situations can result:

• Data blocks committed by a transaction are not written to the data files and appear only in the online redo log. These changes must be reapplied to the data files.
• The data files contain changes that had not been committed when the instance failed. These changes must be rolled back to ensure transactional consistency.

Instance recovery uses only online redo log files and current online data files to synchronize the data files and ensure that they are consistent.

Oracle Database Architecture

When Oracle Database Performs Instance Recovery

Whether instance recovery is required depends on the state of the redo threads. A redo thread is marked open in the control file when a database instance opens in read/write mode and is marked closed when the instance is shut down consistently. If redo threads are marked open in the control file, but no live instances hold the thread enqueues corresponding to these threads, then the database requires instance recovery.

Oracle Database performs instance recovery automatically in the following situations:

• The database opens for the first time after the failure of a single-instance database or all instances of an Oracle RAC database. This form of instance recovery is also called crash recovery. Oracle Database recovers the online redo threads of the terminated instances together.
• Some but not all instances of an Oracle RAC database fail. Instance recovery is performed automatically by a surviving instance in the configuration.

The SMON background process performs instance recovery, applying online redo automatically. No user intervention is required.

Importance of Checkpoints for Instance Recovery

Instance recovery uses checkpoints to determine which changes must be applied to the data files. The checkpoint position guarantees that every committed change with an SCN lower than the checkpoint SCN is saved to the data files.

The following figure depicts the redo thread in the online redo log.

Figure 1-1 Checkpoint Position in Online Redo Log

During instance recovery, the database must apply the changes that occur between the checkpoint position and the end of the redo thread. As shown in Figure 1-1, some changes may already have been written to the data files. However, only changes with SCNs lower than the checkpoint position are guaranteed to be on disk.

Instance Recovery Phases

The first phase of instance recovery is called cache recovery or rolling forward and reapplies all changes recorded in the online redo log to the data files. Because the online redo log contains undo data, rolling forward also regenerates the corresponding undo segments.

Rolling forward proceeds through as many online redo log files as necessary to bring the database forward in time. After rolling forward, the data blocks contain all committed changes recorded in the online redo log files. These files could also contain uncommitted changes that were either saved to the data files before the failure or were recorded in the online redo log and introduced during cache recovery.

After the roll forward, any changes that were not committed must be undone. Oracle Database uses the checkpoint position, which guarantees that every committed change with an SCN lower than the checkpoint SCN is saved on disk. Oracle Database applies undo blocks to roll back uncommitted changes in data blocks that were written before the failure or introduced during cache recovery. This phase is called rolling back or transaction recovery.

Oracle RAC Database Architecture Overview

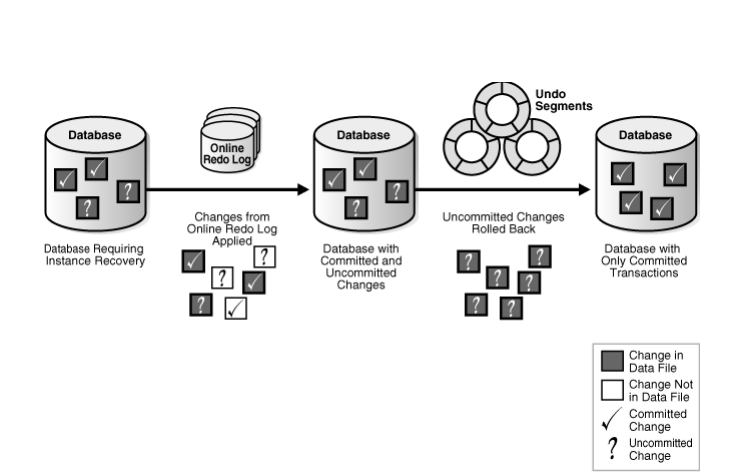

The following figure illustrates rolling forward and rolling back, the two steps necessary to recover from database instance failure

Figure 1-2 Basic Instance Recovery Steps: Rolling Forward and Rolling Back

Oracle Database can roll back multiple transactions simultaneously as needed. All transactions that were active at the time of failure are marked as terminated. Instead of waiting for the SMON process to roll back terminated transactions, new transactions can roll back individual blocks themselves to obtain the required data.
